Suspension    Domes

Models


Radial pleating cable-stayed dome

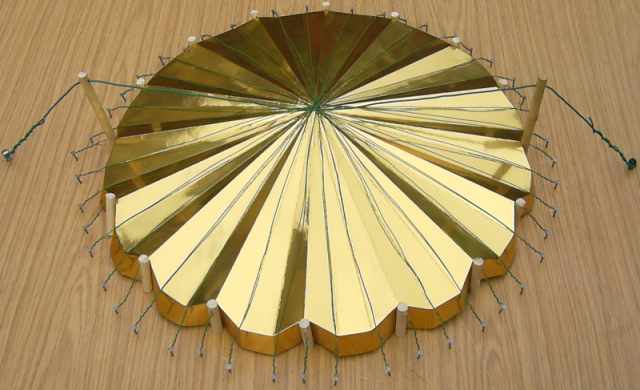

This model was constructed using a single sheet of foil- covered cardboard, dowels and wire, with nails for anchors.

It is supported at the centre point only.


Parallel pleating suspension dome

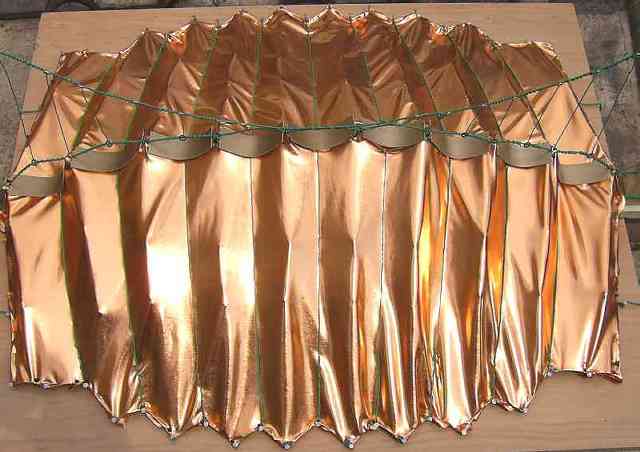

This model was constructed using spandex, wood and wire, with nails for anchors.

It is supported by cables from a single overhead catenary cable:


Radial pleating cable-stayed dome

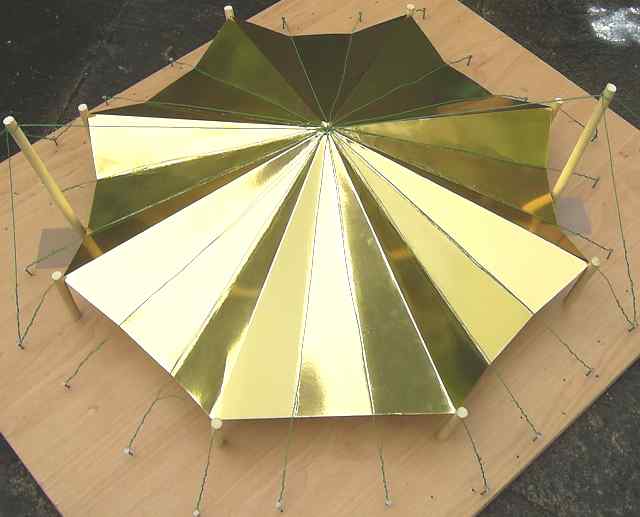

This model was constructed using a single sheet of foil-covered cardboard, dowels and wire, with nails for anchors.

These domes feature [pleated] surfaces.

Here's another dome model which is supported by cables from an overhead cable network:


Suspension dome

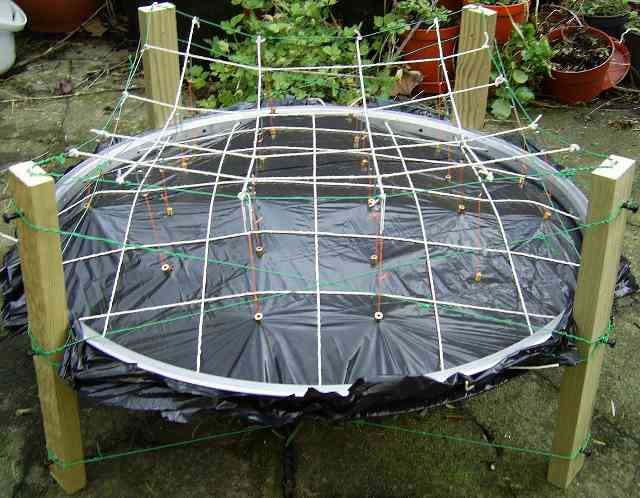

This model was constructed using a bicycle wheel rim, a dustbin liner, string, green wire, orange cotton, wood, paper clips and neodymium magents.

In each case, the models are based on the same principle that suspension bridges use - in the hope of producing designs that make extremely large clear spans possible.

There's a gallery with many more pictures of these domes here.
